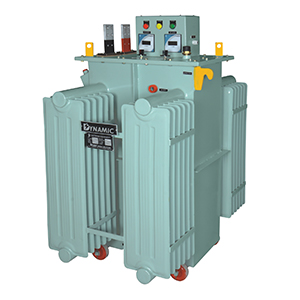

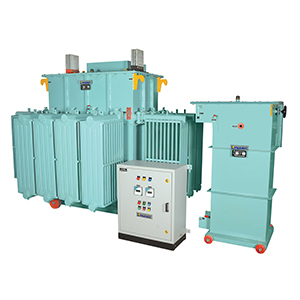

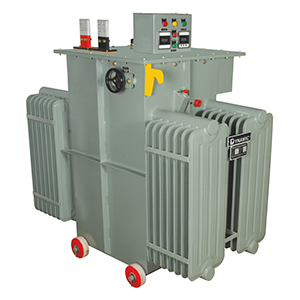

Silicon Rectifier Equipment
UPto 15000 amps
Rectifier Is A Device That Converts Ac Supply Into Dc Supply. Dynamic’s Silicon Rectifiers Are Widely Used In Electroplating, Anodizing, Hard Anodizing And Other So Many Electrochemical Processes.
Dynamic’s Some Standard Rating
| On Load Volts | DC Output Amperes |
|---|---|
| 8 | 250 500 750 1000 1500 2000 3000 upto 15000 |
| 12 | 250 500 750 1000 1500 2000 3000 upto 15000 |
| 16 | 250 500 750 1000 1500 2000 3000 upto 15000 |
| 20 | 250 500 750 1000 1500 2000 3000 upto 15000 |
| 24 | 250 500 750 1000 1500 2000 3000 upto 15000 |
| 80 | 250 500 750 1000 1500 2000 3000 upto 5000 |
Dynamic Energy Solution Covers A Wide Range Starting From 25 amps To 15000 amps At Different Output Voltages As Per Customer’s Requirement Available In Two Different Models Depending Upon The Variation In The Dc Output Voltage I.E. 40 % To 100% In 15 Steps By Two Rotary Switches And 0 To 100% Stepless On Load Control By Voltage Regulator.
- Electroplating
- ED Coating
- Anodizing
- Hydrogen Gas Production
- Hard Anosizing
- Chlorine Gas Production
- Hard Chrome Plating
- Annealing
- Etching
- Furnace & Heating Furnace
- Electro phoretic
- Other Electrochemical Processe
- All Dynamic Rectifiers are provided with DC shunt of proper rating for accurate measurement of DC Current for uniformity in quality of your end product, instead of calibration (which may not be effective after some years of operation).
- All Dynamic Rectifiers are provided with Nylon Wheels instead of Cast iron wheels which go rusty after some period of use.
- All Dynamic Rectifiers are provided with Digital Voltmeter and Digital Ammeter for measurement of DC Voltage & DC Current more accurately.

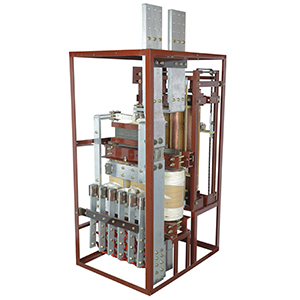

- RC network of Synchronus Motor are fitted on the top cover enclosed in the meter panel/ junction Box in order to reduce maintenance time of taking out the whole Rectifier Assembly in DRC Model.
- Control Panel Consisting of customized items like MCCB/ Contactors /Timer/Buzzer /CVC/CCCetc.
- CVC (Contant Voltage Controller)
- CCC (Constant Current Controller)
- DC Overload Tripping
- Minium Run Down Facility
- Signals for PLC Compatibility
